eSSL · Face & multi-biometric

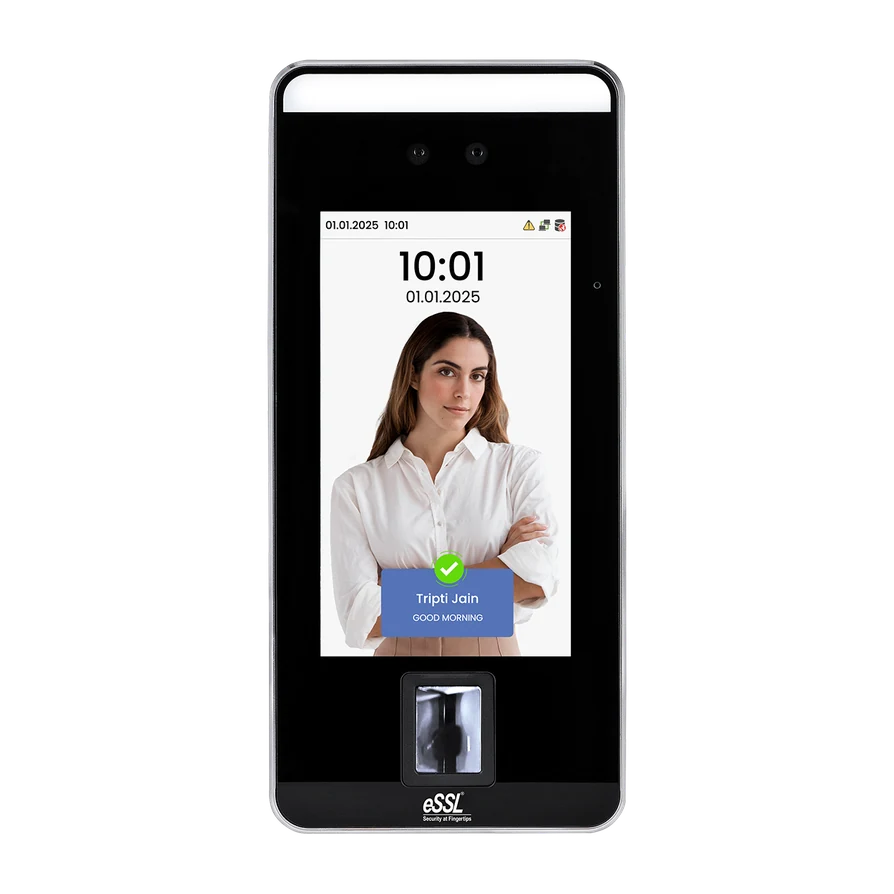

AI-FACE-ARION
A face-recognition option for attendance and access workflows. Discuss daily traffic, employee enrolment, lighting and the required door-control components with our Chennai team.
- Display : 5-Inch
- Camera : WDR Low Light Camera @ 2MP
- Authentication Method : Face / Fingerprint / Card / Password (Virtual Keypad)
- Operation System : Linux
Chennai installation · Software setup · Support options
Published catalog specifications
Check the details.
| Display | 5-Inch |
|---|---|
| Camera | WDR Low Light Camera @ 2MP |
| Operation System | Linux |
| Hardware | CPU: 1.GHz Dual Core , RAM: 1GB , ROM: 8GB |
| Authentication Method | Face / Fingerprint / Card / Password (Virtual Keypad) |
| Fingerprint Template Capacity | 6,000 (1:N) |
| Face Template Capacity | 6,000 (1:N) |
| Card Capacity | 10,000 (1:N) |
| Transaction Capacity | 200,000 (1:N |
| Biometric Verification Speed | Fingerprint: < 0.3 sec , Facial Recognition: < 1 sec |
| Touchless Biometric Recognition Distance | 1cm to 100cm - Facial Recognition |
| False Acceptance Rate (FAR) % | Facial Recognition: FAR ≤ 0.01% , Fingerprint: FAR ≤ 0.0001% |
| False Rejection Rate (FRR) % | Facial Recognition: FRR ≤ 0.02% , Fingerprint: FRR ≤ 0.01% |
| Card Type | Proximity ID Card@125 kHz , Mifare IC Card@13.56 MHz (Optional) , HID Prox, HID Iclass (Optional) |
| Communication | TCP/IP, Wiegand (Input & Output),RS485,Wi-Fi |
| Access Control Interface | Electro Magnetic Lock/ Electric Lock, Door Sensor, Exit Button, Alarm Output |
| Power Supply | DC 12V 3A |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 91.93mm * 202.93mm * 21.5mm (L*W*H) |
| Supported Software | eTimetracklite |
Specifications follow the published eSSL catalog. Features, reader options and included accessories can vary by configuration. Confirm the offered unit and software licence in your quotation.
Manufacturer reference: View eSSL product details ↗
