eSSL · Door access terminals

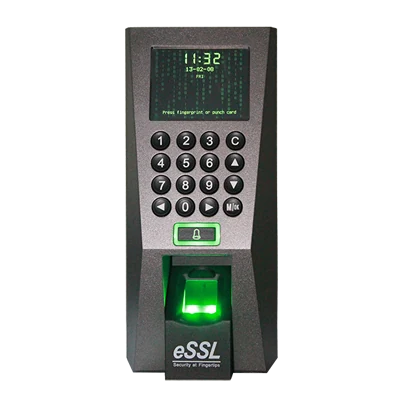

F18
A fingerprint access-control terminal for a managed workplace entrance. A complete installation also needs a compatible lock, power supply, exit arrangement and door checks.
- Fingerprints Capacity : 3000
- Card Capacity : 5000
- Transaction Capacity : 100000
- Fingerprint Sensor= 500 DPI Optical Sensor
Chennai installation · Software setup · Support options
Published catalog specifications
Check the details.
| Fingerprints Capacity | 3000 |
|---|---|
| Card Capacity | 5000 |
| Transaction Capacity | 100000 |
| CPU | 32 bit High End Microprocessor |
| Fingerprint sensor | 500 DPI Optical sensor |
| FAR | <=0.0001% |
| FRR | <=1% |
| Identification speed | <=0.5sec |
| Algorithm Ver | 9/10 |
| Display | 2.8" color TFT |
| Keypad | Yes |
| LED Indicator | Green/Red |
| Schedule Bell/Speaker | Mini Speaker |
| Communication | TCP/IP,USB host |
| Push data | Standard |
| Power Supply | DC 12V --- 1.5A |
| Operating Temp | 0 °C - 45 °C |
| Operating Humidity | 20% - 80% |
| Battery | NO |
| Dimensions (in mm) | (L)183 x (W)80 x (H)42 |
| Wiegand | In & Out |
| Relay | 12 V relay for lock EM lock, Bolt Lock or Strike lock |
| Door Sensor | Yes |
| Anti Passback | Yes |
| Door Bell | Yes |
| Support exit readers | FR 1200/KR 500 |
| Battery | No |
| Card Readers | Yes |
| Card Type | Mifare/HID Prox |
Specifications follow the published eSSL catalog. Features, reader options and included accessories can vary by configuration. Confirm the offered unit and software licence in your quotation.
Manufacturer reference: View eSSL product details ↗
