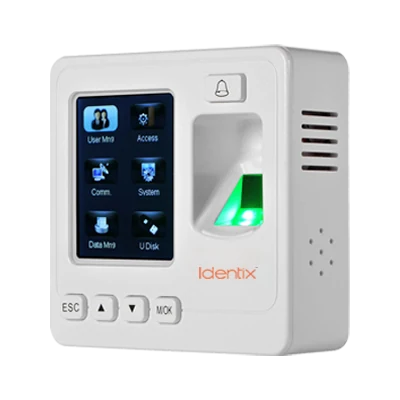

SF100
A fingerprint terminal for attendance and access-control requirements. Discuss the doorway, lock choice, exit device and software administration as part of a complete installation.
- Fingerprint Capacity : 1500
- Card Capacity : 5000
- Transactions : 80000 Logs
- Fingerprint Sensor : 500 DPI Optical sensor
Chennai installation · Software setup · Support options
Published catalog specifications
Check the details.
| Fingerprint Capacity | 1500 |
|---|---|
| Card Capacity | 5000 |
| Transactions | 80000 Logs |
| Fingerprint Sensor | 500 DPI Optical sensor |
| Display | 2.4” TFT |
| Algorithm | VX10.0 version |
| Communication | TCP/IP, RS485, USB-host |
| Power | DC 12V/3A |
| Operating Temperature | 0°C - 45°C |
| Operating Humidity | 20% - 80% |
| Dimension (W x L x H) | 90 90 x 34.5 mm |
| Support | Exit Reader KR500E, Electric lock, Door sensor, Alarm, Exit button, Door bell |
| Wiegand Signal | Wiegand input & output |
Specifications follow the published eSSL catalog. Features, reader options and included accessories can vary by configuration. Confirm the offered unit and software licence in your quotation.
Manufacturer reference: View eSSL product details ↗
